SPROCKETS PRE-DRILLED SHAFT HOLE

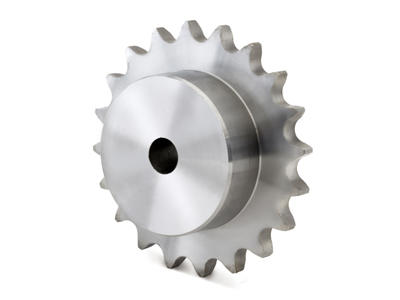

Sprockets for roller chains in European standard. As standard, the sprockets are delivered with a single-sided hub and pre-drilled shaft hole (without tolerance), but post-processing such as turned shaft hole, keyway drawing and holes for stop screws are offered from our own workshop. Max shaft hole with keyway SS 2305 can generally be obtained by multiplying Dn x 0.6.

ammega italia måttabell kedjehjul iso momentum industrial	387.00 Kb
ammega italia måttabell kedjehjul ansi momentum industrial	159.00 Kb

Article	Size	Pitch (inch)	Pitch (mm)	Pitch diameter	Hub diameter	Number of teeth	Bore diameter

Article	Size	Pitch (inch)	Pitch (mm)	Pitch diameter	Hub diameter	Number of teeth	Bore diameter
03B-1-10 KEDJEHJUL 5MM 03B No value 5 16.18 9 10 5	03B	No value	5	16.18	9	10	5
03B-1-11 KEDJEHJUL 5MM 03B No value 5 17.75 11 11 6	03B	No value	5	17.75	11	11	6
03B-1-12 KEDJEHJUL 5MM 03B No value 5 19.32 12 12 6	03B	No value	5	19.32	12	12	6
03B-1-13 KEDJEHJUL 5MM 03B No value 5 20.89 14 13 6	03B	No value	5	20.89	14	13	6
03B-1-14 KEDJEHJUL 5MM 03B No value 5 22.47 15 14 6	03B	No value	5	22.47	15	14	6
03B-1-15 KEDJEHJUL 5MM 03B No value 5 24.04 16 15 6	03B	No value	5	24.04	16	15	6
03B-1-17 KEDJEHJUL 5MM 03B No value 5 27.2 18 17 8	03B	No value	5	27.2	18	17	8
03B-1-18 KEDJEHJUL 5MM 03B No value 5 28.79 18 18 8	03B	No value	5	28.79	18	18	8
03B-1-19 KEDJEHJUL 5MM 03B No value 5 30.38 18 19 8	03B	No value	5	30.38	18	19	8
03B-1-20 KEDJEHJUL 5MM 03B No value 5 31.96 18 20 8	03B	No value	5	31.96	18	20	8
03B-1-21 KEDJEHJUL 5MM 03B No value 5 33.54 20 21 8	03B	No value	5	33.54	20	21	8
03B-1-22 KEDJEHJUL 5MM 03B No value 5 35.13 20 22 8	03B	No value	5	35.13	20	22	8
03B-1-23 KEDJEHJUL 5MM 03B No value 5 36.72 20 23 8	03B	No value	5	36.72	20	23	8
03B-1-24 KEDJEHJUL 5MM 03B No value 5 38.3 20 24 8	03B	No value	5	38.3	20	24	8
03B-1-25 KEDJEHJUL 5MM 03B No value 5 39.89 20 25 8	03B	No value	5	39.89	20	25	8
03B-1-27 KEDJEHJUL 5MM 03B No value 5 43.07 25 27 8	03B	No value	5	43.07	25	27	8
03B-1-28 KEDJEHJUL 5MM 03B No value 5 44.65 25 28 8	03B	No value	5	44.65	25	28	8
03B-1-29 KEDJEHJUL 5MM 03B No value 5 46.25 25 29 8	03B	No value	5	46.25	25	29	8
03B-1-30 KEDJEHJUL 5MM 03B No value 5 47.83 25 30 8	03B	No value	5	47.83	25	30	8
03B-1-32 KEDJEHJUL 5MM 03B No value 5 51.01 30 32 8	03B	No value	5	51.01	30	32	8
