FLAT SPROCKET WITHOUT HUB

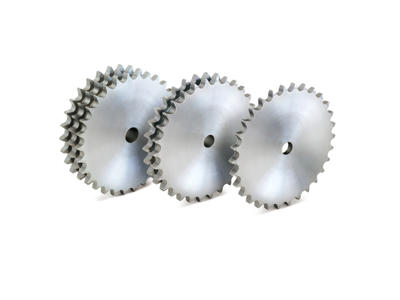

Flat sprocket without hub for roller chain in European standard. As standard, the sprockets are delivered with a pre-drilled shaft hole (without tolerance), but post-processing such as turned shaft hole, keyway drawing, etc. is offered from our own workshop.

ammega italia måttabell plana kedjehjul ansi momentum industrial	144.00 Kb
ammega italia måttabell plana kedjehjul iso momentum industrial	290.00 Kb

Article	Mode	Size	Pitch diameter	Number of teeth	Pitch (mm)	Pitch (inch)	Bore diameter

Article	Mode	Size	Pitch diameter	Number of teeth	Pitch (mm)	Pitch (inch)	Bore diameter
03B-1-12 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 19.32 12 5 No value 5	Kedjehjul plant	03B	19.32	12	5	No value	5
03B-1-17 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 27.2 17 5 No value 6	Kedjehjul plant	03B	27.2	17	5	No value	6
03B-1-18 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 28.79 18 5 No value 6	Kedjehjul plant	03B	28.79	18	5	No value	6
03B-1-25 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 39.89 25 5 No value 8	Kedjehjul plant	03B	39.89	25	5	No value	8
03B-1-27 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 43.07 27 5 No value 8	Kedjehjul plant	03B	43.07	27	5	No value	8
03B-1-36 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 57.37 36 5 No value 8	Kedjehjul plant	03B	57.37	36	5	No value	8
03B-1-52 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 82.81 52 5 No value 10	Kedjehjul plant	03B	82.81	52	5	No value	10
03B-1-54 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 85.97 54 5 No value 10	Kedjehjul plant	03B	85.97	54	5	No value	10
03B-1-57 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 90.76 57 5 No value 10	Kedjehjul plant	03B	90.76	57	5	No value	10
03B-1-60 P KEDJEHJUL 5MM PLANT Kedjehjul plant 03B 95.53 60 5 No value 10	Kedjehjul plant	03B	95.53	60	5	No value	10
04B-1-10 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 19.42 10 6 No value 6	Kedjehjul plant	04B	19.42	10	6	No value	6
04B-1-100 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 191.01 100 6 No value 16	Kedjehjul plant	04B	191.01	100	6	No value	16
04B-1-11 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 21.3 11 6 No value 6	Kedjehjul plant	04B	21.3	11	6	No value	6
04B-1-114 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 217.75 114 6 No value 16	Kedjehjul plant	04B	217.75	114	6	No value	16
04B-1-12 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 23.18 12 6 No value 6	Kedjehjul plant	04B	23.18	12	6	No value	6
04B-1-120 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 229.2 120 6 No value 16	Kedjehjul plant	04B	229.2	120	6	No value	16
04B-1-13 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 25.05 13 6 No value 8	Kedjehjul plant	04B	25.05	13	6	No value	8
04B-1-14 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 26.96 14 6 No value 8	Kedjehjul plant	04B	26.96	14	6	No value	8
04B-1-15 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 28.86 15 6 No value 8	Kedjehjul plant	04B	28.86	15	6	No value	8
04B-1-16 P KEDJEHJUL 6MM PLANT Kedjehjul plant 04B 30.76 16 6 No value 8	Kedjehjul plant	04B	30.76	16	6	No value	8

1 2 3 4 5

...

Displaying 1 to 20 of 1727
