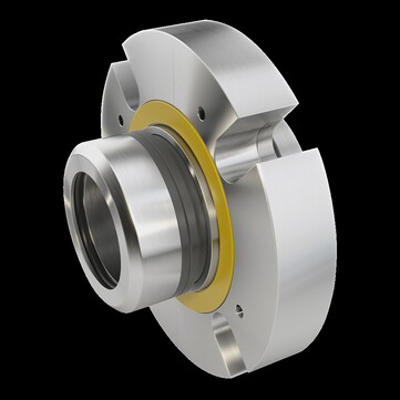

Mekanisk axeltätning patron enkel Huhnseal

Enkel mekanisk axeltätning med fördelaktiga inbyggnadsmått.
mekanisk tätning benämningsnyckel 243.00 Kb
Artikelnr. (A-Z)
Artikel Typ Axeldiameter Material Max tryck (Bar) T max ( ͦC) Max hastighet Axiell rörelse (mm)
8240709
BF-ISP-057-WW677
  • BF-ISP
  • 57
  • SiC/SiC/EPDM
  • 25
  • 210
  • 20
  • ±3,0
BF-ISP 57 SiC/SiC/EPDM 25 210 20 ±3,0
8240716
BF-ISP-068-WW677 R212.12918-90
  • BF-ISP
  • 68
  • SiC/SiC/EPDM
  • 25
  • 210
  • 20
  • ±3,0
BF-ISP 68 SiC/SiC/EPDM 25 210 20 ±3,0
8240875
BF-ISP-088,9-WW677 MEK TÄTNING
  • BF-ISP
  • 88
  • SiC/SiC/EPDM
  • 25
  • 210
  • 20
  • ±3,0
BF-ISP 88 SiC/SiC/EPDM 25 210 20 ±3,0
8240891
BF-ISP-033-WW677 R 213.12970-9
  • BF-ISP
  • 33
  • SiC/SiC/EPDM
  • 25
  • 210
  • 20
  • ±3,0
BF-ISP 33 SiC/SiC/EPDM 25 210 20 ±3,0
8520096
BF-ISP-057-WW677 ZQ 522.14183-
  • BF-ISP
  • 57
  • SiC/SiC/EPDM
  • 25
  • 210
  • 20
  • ±3,0
BF-ISP 57 SiC/SiC/EPDM 25 210 20 ±3,0
8520113
BF-ISP-033-WW577 ZQ SF
  • BF-ISP
  • 33
  • SiC/SiC/FPM
  • 25
  • 210
  • 20
  • ±3,0
BF-ISP 33 SiC/SiC/FPM 25 210 20 ±3,0
8560003
ES-100-ZZ687
  • ES
  • 100
  • SiC/SiC/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 100 SiC/SiC/EPDM 25 100 18 ±2,0
8560007
ES-035-SIC/SIC/EPDM
  • ES
  • 35
  • SiC/SiC/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 35 SiC/SiC/EPDM 25 100 18 ±2,0
8560013
ES-038-ZC687
  • ES
  • 38
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 38 SiC/C/EPDM 25 100 18 ±2,0
8560016
ES-030-SIC/C/EPDM
  • ES
  • 30
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 30 SiC/C/EPDM 25 100 18 ±2,0
8560017
ES-032-ZC687
  • ES
  • 32
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 32 SiC/C/EPDM 25 100 18 ±2,0
8560018
ES-033-ZC687
  • ES
  • 33
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 33 SiC/C/EPDM 25 100 18 ±2,0
8560019
ES-035-ZC687
  • ES
  • 35
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 35 SiC/C/EPDM 25 100 18 ±2,0
8560020
ES-040-ZC687
  • ES
  • 40
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 40 SiC/C/EPDM 25 100 18 ±2,0
8560024
ES-050-ZC687
  • ES
  • 50
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 50 SiC/C/EPDM 25 100 18 ±2,0
8560025
ES-055-ZC687 CAR/SIC/EPDM
  • ES
  • 55
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 55 SiC/C/EPDM 25 100 18 ±2,0
8560026
ES-060-ZC687
  • ES
  • 60
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 60 SiC/C/EPDM 25 100 18 ±2,0
8560032
ES-090-ZC687
  • ES
  • 90
  • SiC/C/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 90 SiC/C/EPDM 25 100 18 ±2,0
8560037
ES-030-ZZ687
  • ES
  • 30
  • SiC/SiC/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 30 SiC/SiC/EPDM 25 100 18 ±2,0
8560039
ES-033-ZZ687
  • ES
  • 33
  • SiC/SiC/EPDM
  • 25
  • 100
  • 18
  • ±2,0
ES 33 SiC/SiC/EPDM 25 100 18 ±2,0
Föregående sida
1 2 3 4
Nästa sida
Visar 1 till 20 av 72
